The secret to a crystal-clear swimming pool is a perfect filtration system.

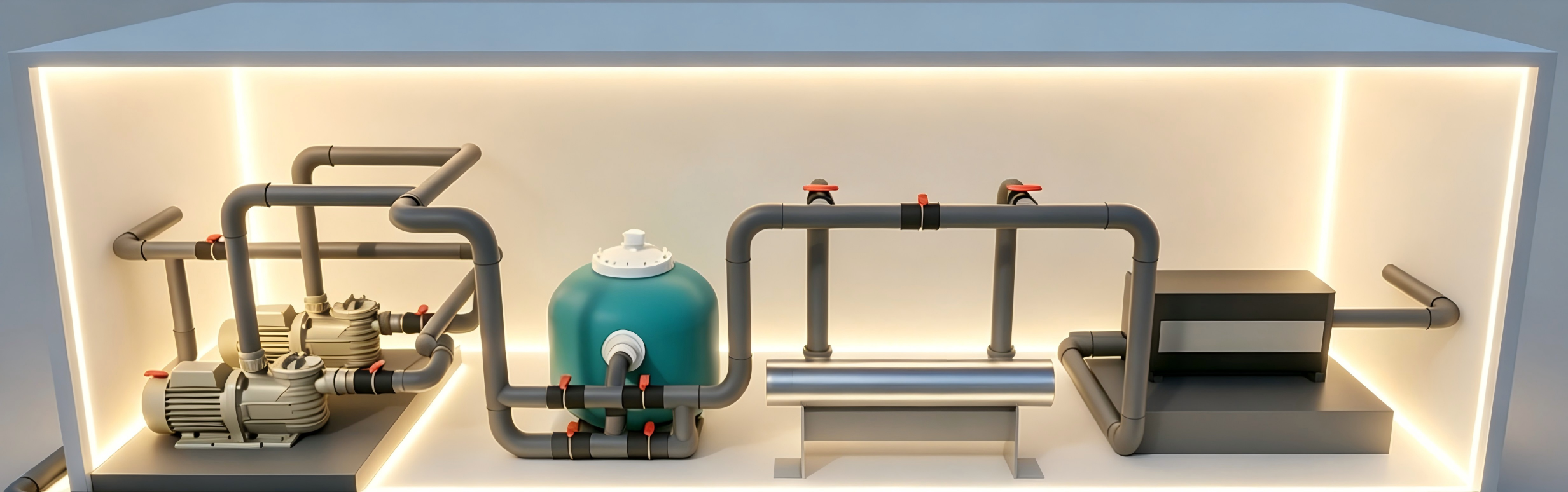

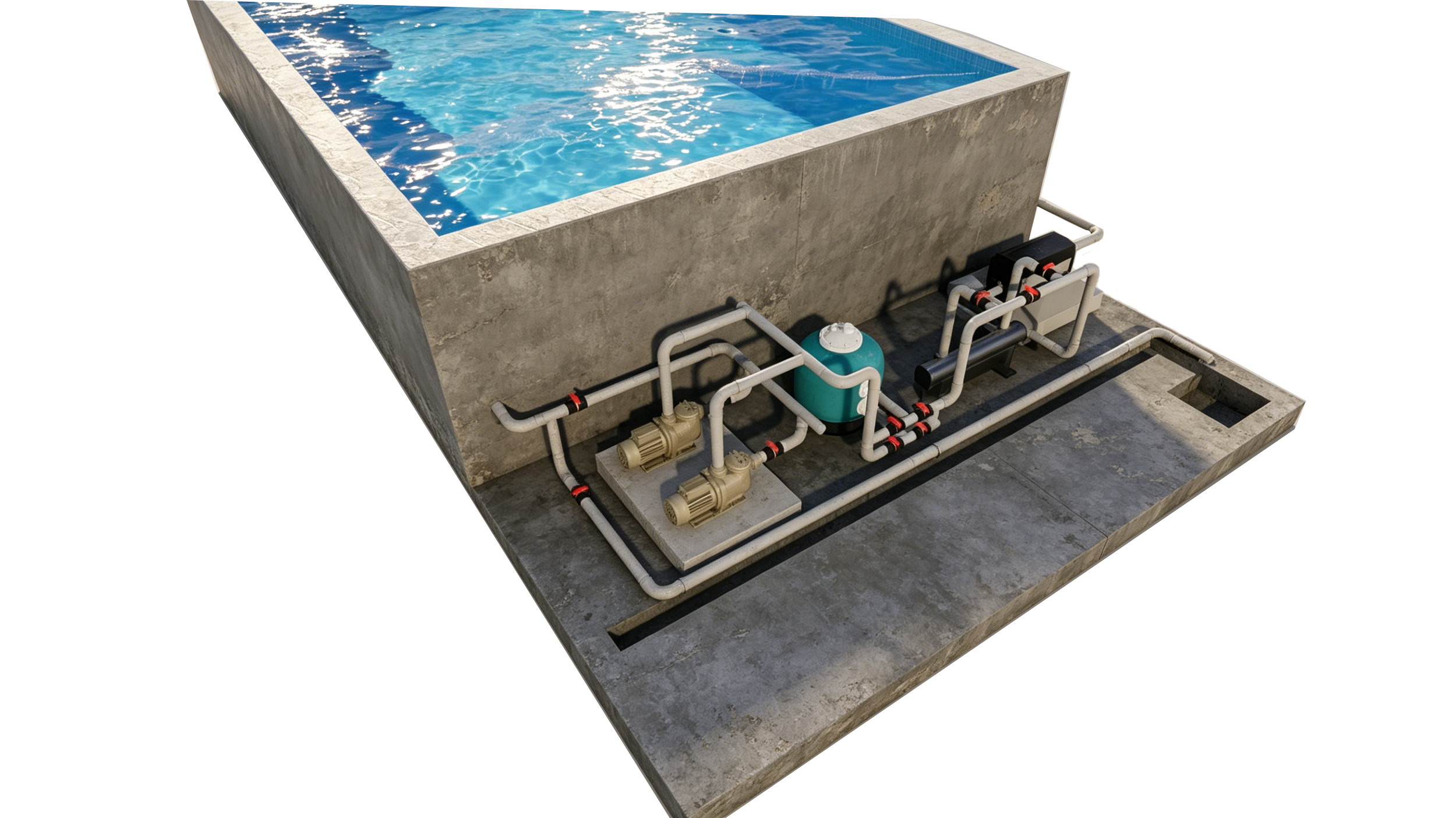

This is your pool equipment room.
Suitable pool water volume: 30–50 m³
Suitable for water flow rate: 7–15 m³/h
Flow rate： 15 m³/h
Head ：7 m
Power：0.75 kW / 0.75 HP
Voltage：230 V / 50 Hz
Connection size: DN50
(with hair strainer)
Package size: 601 Ă— 316 Ă— 275 mm
Weight: 19 kg

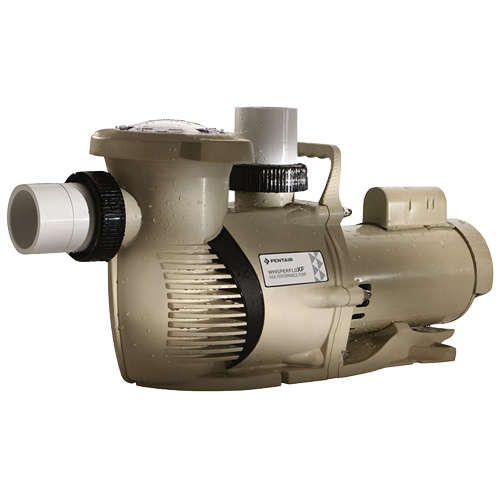

Quantity: 2 sets (1 in operation / 1 standby)Circulation pump

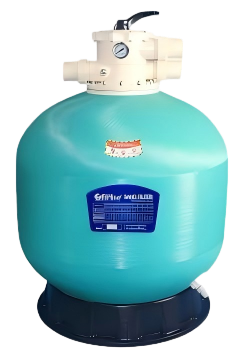

Fiberglass filter
Quantity: 1 setsSCD600
Diameter: 625 mm
Height: 865 mm
Flow rate: 16 mÂł/h
Filter area: 0.31 ㎡
Connection size: DN40
Package size: 630 Ă— 630 Ă— 675 mm
Weight: 18 kg
Required sand weight：110kg

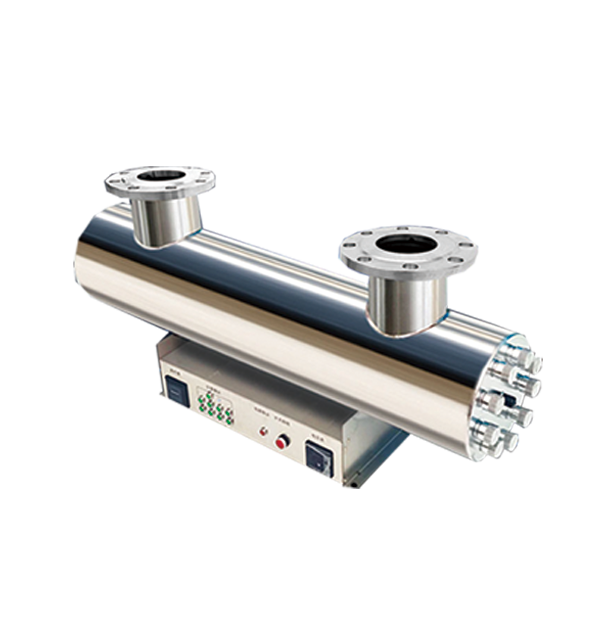

UV sterilizer
Quantity: 1 setsCapacity: 18 mÂł/h
Voltage：220V / 50Hz
Inlet and outlet diameter: DN40mm
Generator size: 900 Ă— 100 Ă— 300 mm

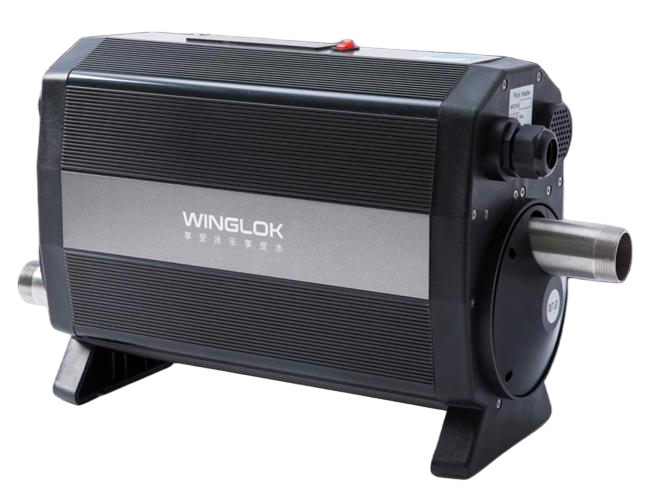

Electric heater
Quantity: 1 setsElectric heater: 24KW
Voltage: 380V
Current: 37A Ă— 3
Heating tube: 8kW Ă— 3
Pipe diameter: DN50
Flow requirement: 5–10 m³/h
Dimensions: 630Ă—300*430mm
Optional equipment configurations for different pool water volumes:
30-50m³ ▎ 50–80 m³
80–120 m³ ▎120–150 m³

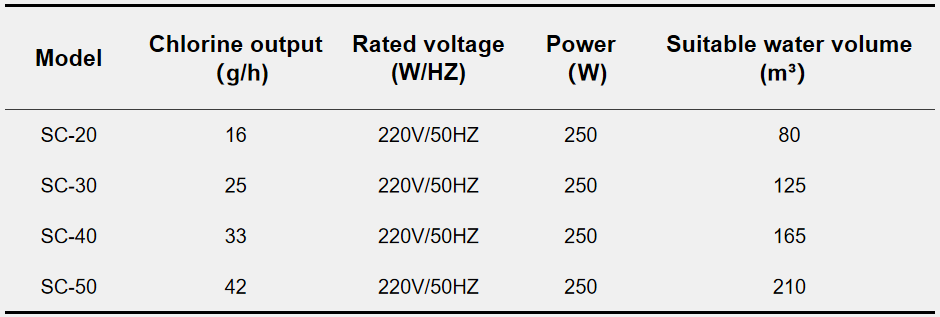

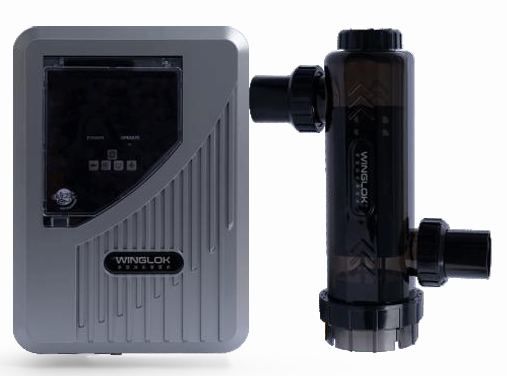

Disinfection equipment can be replaced with a salt chlorinator.
Suitable for pool water volume: 50-200 mÂł
Automatic detection
intelligent and convenient
Detect effluent â–Ž Automatic cleaning
High temperature protection â–Ž Low salinity alarm

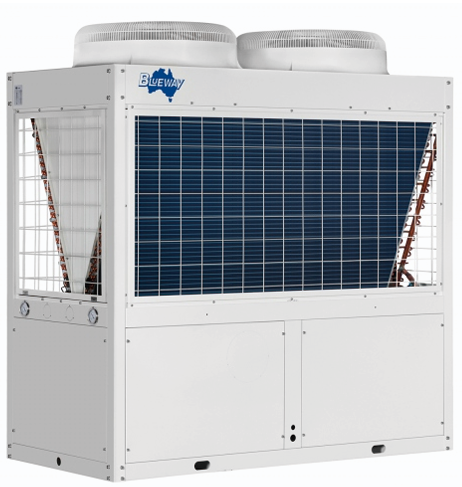

The heating equipment can be replaced with an air source heat pump.
Efficient energy saving
constant temperature heating
